Fire Detection and alarm System Ancillaries
Vimpex manufacture a wide range of Fire Detection, Alarm and Building Infrastructure System Ancillaries including door holders, batteries and PSUs to name a few. All System Ancillaries, whether Vimpex-manufactured or supplied by our trusted partners, are available ex-stock for immediate delivery.
System Ancillaries
All our System Accessories, whether manufactured by Vimpex (like our Identifire range) or supplied by our trusted partners, are available ex-stock for immediate delivery. As part of our System Ancillaries offering, our Identifire Accessories are compatible with all conventional fire alarm systems and can be customised, branded or OEM manufactured to suit any system. They use the same mounting method as the rest of the Identifire range meaning consistency and commonality throughout.
System Ancillaries
Vimpex is proud to both manufacture our own System Ancillary products, as well as partner with trusted brands to bring you an extensive range of fire detection, alarm and building infrastructure System Accessories.

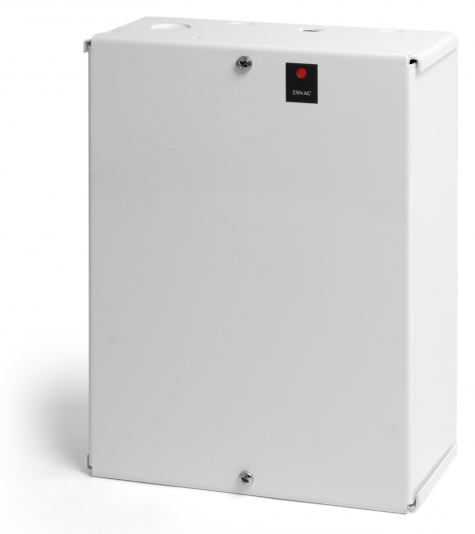

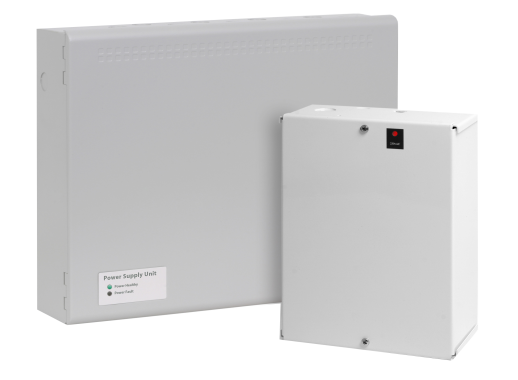

The Vimpex range of low cost general purpose boxed PSUs are suitable for use with our wide range of BS EN 1155 approved Door Holders and other 24 V dc devices. Three boxed 24 V dc general purpose power supplies are available: 1 A, 2 A and 3 A.
- Available as 1, 2 or 3 Amp versions
- Competitively priced, quality units
- Ideal for door holder and other system ancillary products

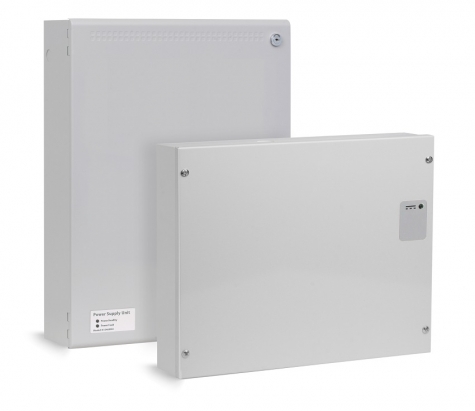

The Identifier series of EN 54-4 approved switched-mode power supplies has intelligent on-demand load sharing capability to provide exceptional flexibility. This allows rapid large capacity battery charging with either extended standby hold-up duration at light loads, or short high current peak loads where spare output capacity is diverted to battery charging.
- Approved to EN 54 Part 4
- High quality enclosures
- Reliable power
- Advanced features aid engineers and system designers
- Use of engineer's tool a significant advantage in service

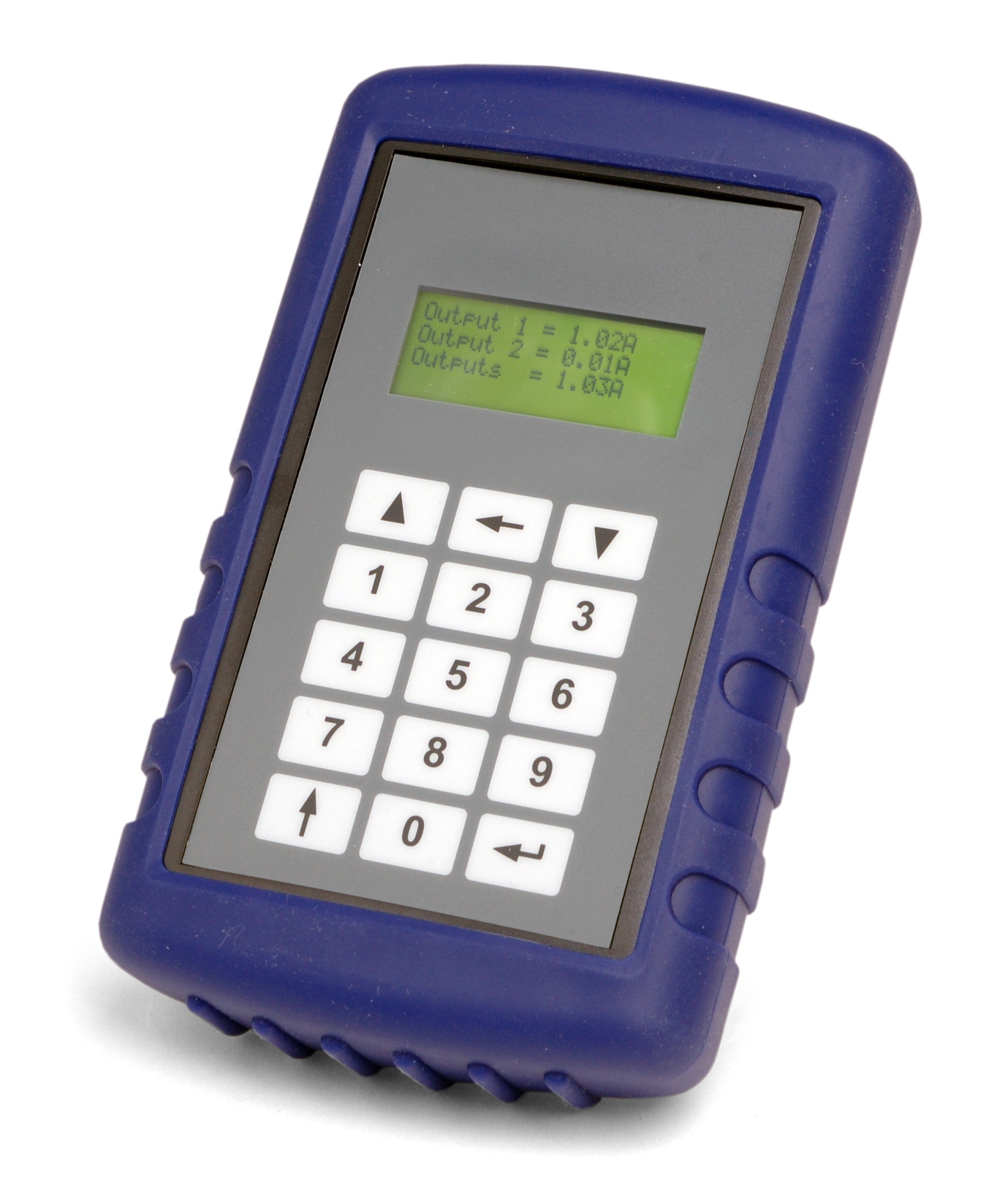

This handy tool allows the installer to monitor the performance of the power supply, system currents and voltages, the condition of batteries and log PSU events and faults. It can also be used to calibrate and test power supplies.
- Aids service reporting
- Monitors battery and charging performance
- Enhances benefits of Identifire Power Supplies

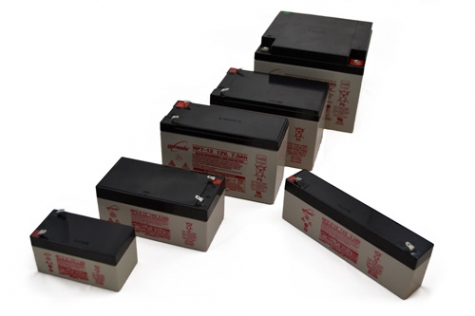

The Genesis NP battery range leads the way in battery quality and reliability. Developed by world leading manufacturer Enersys, the Genesis NP series is the culmination of 100 years of battery manufacturing experience.
- Available range from 1.2 Ah to 38 Ah
- Expected life span of 3 to 5 years in float service applications
- More than 1,000 discharge/recharge cycles depending on the average depth of discharge
- Recovery capabilities even after deep discharges
- Can be operated in a broad range of ambient temperatures

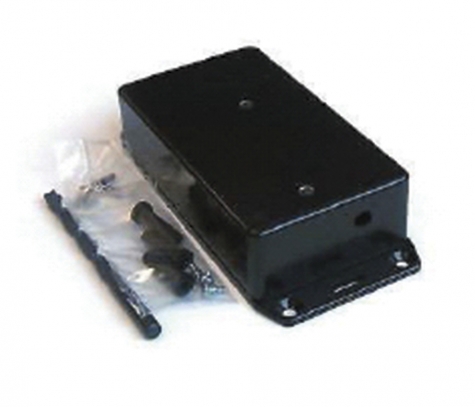

The ANC0023 is a quad-band GSM relay board and auto-dialler. It offers Open-on-Call access control with Text Alert and Auto-Dial for GSM850MHz, GSM900MHz, DCS1800MHz and PCS1900MHz. The unit has been primarily designed for security applications although can be used as a general purpose call/SMS activated relay.
- Ideal for use with Hydrosense Water Leak Detection systems
- Power Supply 12-24 V ac or dc 400 mA Max. (35-20 mA idle)
- Relay Output 5A Max. CATII 220 V ac
- The connections are ‘voltage free’ with no connection to +VE or GND. The relay connections have a minimum creepage distance to GND greater than 5mm and are CATII rated to 220 V

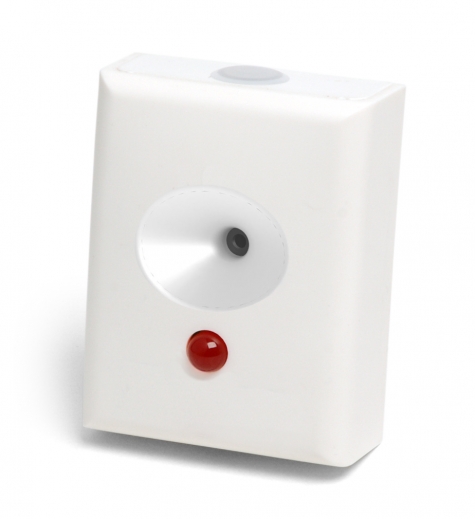

The Vimpex BZ1L is an indicator with sounder unit. It is designed to be connected to a conventional sounder circuit or strobe circuit from a control panel.
- European styling
- Large, visible LED for fire alarm applications
- Push through cable gland for speedy install
