Ogura Hydraulic Bar Cutters
The Ogura range of Hydraulic Bar Cutters are extremely reliable, powerful and easy to use.
Ogura Bar Cutters
Ogura tools are tough, powerful and portable tools for cutting, spreading, lifting and opening. They are ruggedised for military and security services operations and are extremely versatile tools and equally at home in heavy industrial environments.
Ogura Industrial Tools
All Ogura industrial tools use the patented 400 bar pump which gives incredible power-to-weight performance, despite their sleek, compact designs. Powered by the excellent Makita Li-ion 18 V battery pack, Ogura tools are the only manufacturer licensed to use Makita motors and batteries.
As European distributor, stockist and service agent for Ogura, customers can be assured that spares and repairs are readily available from Vimpex.

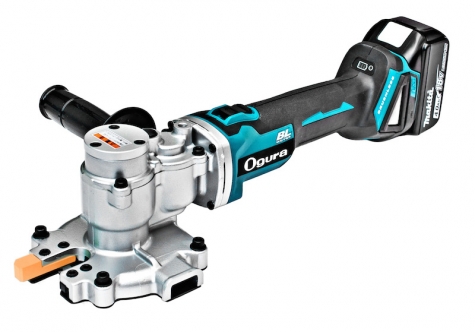

These versatile cutters maintain thread profile in rebar and stud and allow rebar rod to be flush cut to surface, with only 2-3mm showing and no burrs. These tools use specially designed carbide-tipped cuttings discs, which reduce noise, vibration and sparking, and allow up to 38 mm rebar and stud to be cut whilst maintaining the profile to allow nuts and couplings to be attached without re-work or thread cleaning.
The cutting disc is fully enclosed to enhance safety and to channel the few sparks that are produced. A jaw ensures minimum movement of the profile whilst cutting - up to 3000 cuts per disc.
The tool uses the most modern and up to date Makita brushless motor technology and rechargeable 6.0 Ah* Li-ion battery (supplied separately), which ensures low maintenance and maximum cuts per charge (up to 240 on 10 mm bar).
- Motor type 18 V dc
- Battery (optional extra) 18 V 6.0 or 5.0 Ah
- No. load speed 2,200 rpm
- External blade diameter 110mm
- Weight 4.0 kg to 6.0 kg

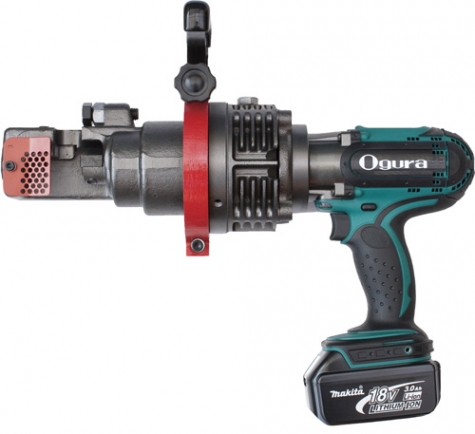

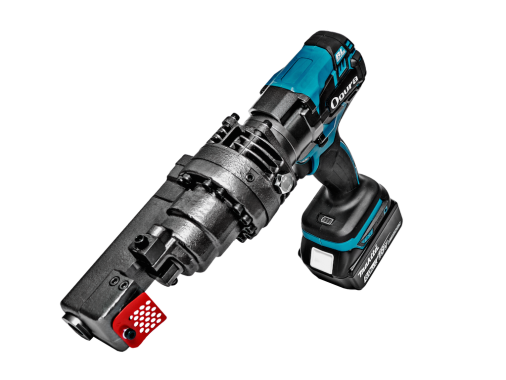

Truly portable and powerful rebar cutters. battery-powered and easy to use thanks to the rotating handle.
- Motor type 18 V dc
- Battery 18 V 3.0 Ah
- Cutting speed 2.5 sec. to 6.0 sec.
- Cutting capacity (Rebar) 620 N/mm, D13 to D20
- Weight 4.7 kg to 10.5 kg

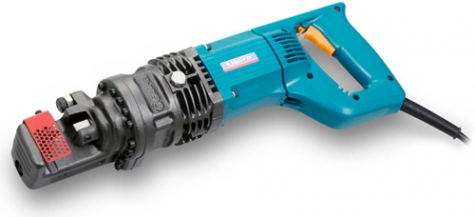

Mains powered portable high-speed bar cutters for up to 16mm high tensile bar.
- Motor type 1050 W
- Cutting speed 1.5 sec.
- Cutting capacity (Rebar) 490 N/mm, D16, 560 N/mm, D16, 620 N/mm, D16,
- Weight 8.8 kg
- Dimensions L x W x H 492mm x 165mm x 120mm

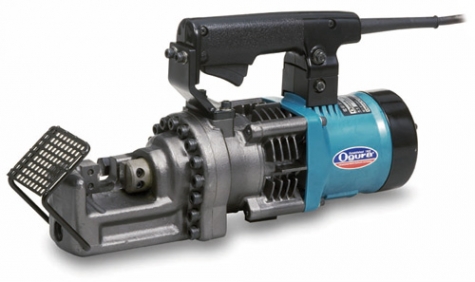

Mains powered portable high-speed bar cutters for up to 20mm high tensile bar.
- Motor type 1330 W
- Cutting speed 2.5 sec.
- Cutting capacity (Rebar) 490 N/mm, D20, 560 N/mm, D20, 620 N/mm, D20,
- Weight 12.2 kg
- Dimensions L x W x H 396mm x 112mm x 220mm

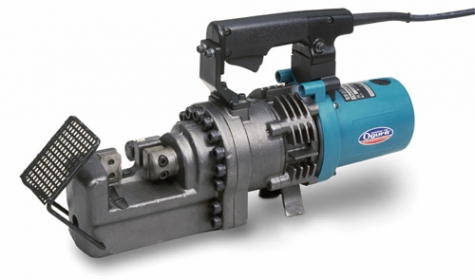

High tensile, high speed 25mm bar cutter
- Motor type 1430 W
- Cutting speed 3.5 sec.
- Cutting capacity (Rebar) 490 N/mm, D25, 560 N/mm, D25, 620 N/mm, D25,
- Weight 22 kg
- Dimensions L x W x H 480mm x 138mm x 268mm

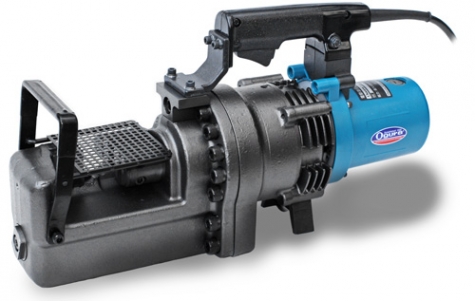

High tensile, high speed 32mm bar cutter
- Motor type 1430 W
- Cutting speed 7 sec.
- Cutting capacity (Rebar) 490 N/mm, D32, 560 N/mm, D32, 620 N/mm, D32,
- Weight 37.6 kg
- Dimensions L x W x H 543mm x 167.5mm x 289mm
