Ogura Bar Benders

Ogura hydraulic and mechanical tools are tough, powerful and portable equipment designed for bending, cutting, spreading and lifting.

Download brochure

Ogura Bar Benders

Ogura were the first manufacturer in the world to develop a range of portable, lightweight and powerful battery powered hydraulic bending, cutting, spreading and lifting tools. These tools are in use worldwide by construction teams and within the rescue, military, police and security services. Ogura have also developed some incredible mechanical bar bending equipment, as you can see in this video.

Ogura Bar Benders

As European distributor, stockist and service agent for Ogura, customers can be assured that spares and repairs are readily available from Vimpex.

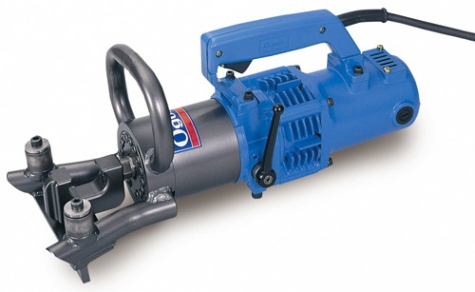

Ogura HBB-525

Portable, mains powered, high tensile 25mm Bar Bender

  • Motor 1330 W
  • Bending capability Intermediate Grade 490 N/mm - 25mm | Hard Grade 570 N/mm - 22mm | High Grade 620 N/mm - 22mm
  • Bending angle 0 - 90 degrees
  • Bending speed to 90 degrees: 25mm = 8 sec and 13mm = 5 sec.
  • Weight 15.2 kg (excluding case)
Download brochure
Ogura MB-225

Mechanical, mains powered, high tensile 25mm Bar Bender

  • Motor 1430 W
  • Bending capability 620 N/mm
  • Bending angle 0 - 180 degrees
  • Bending speed to 180 degrees: 9 sec.
  • Weight 94.9 kg
Download brochure

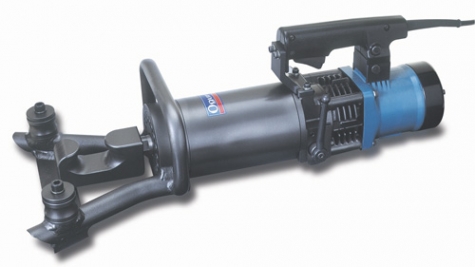

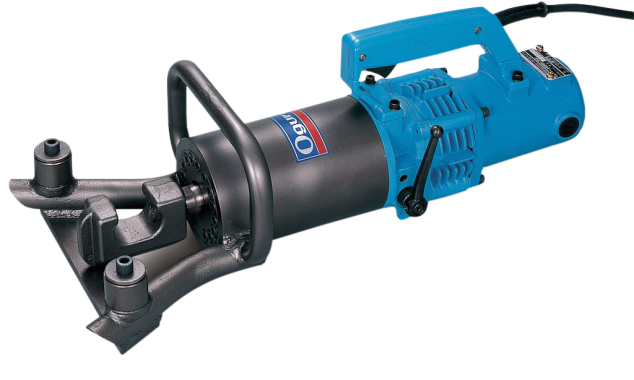

Ogura HBB-32HPW

Portable, mains powered, high tensile 32mm Bar Bender

  • Motor 1330 W
  • Bending capability 620 N/mm
  • Bending angle 0 - 90 degrees
  • Bending speed to 90 degrees: 32mm = 15 sec and 13mm = 11 sec.
  • Weight 25.4 kg (excluding case)
Download brochure

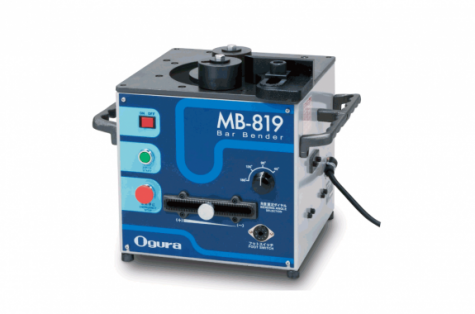

Ogura MB-819

New model with 'double insulated motor' and includes dial setting for basic angle 0 to 180 degrees with sliding lever for fine control, optional "foot switch" for faster control and optional 90 degrees bending collar for small radius bending of D10 or D13 rebar.

  • Single-Phase, 110-115V/220-230V, 50/60Hz, 1050W
  • Bending speed 180 degrees bend 5.0 secs (D25)
  • Maximum bending capacity 620N/mm² (63kgf/mm²) Max.D20
  • Minimum bending radius R15～R38 (Using standard collar
  • Bending angle 0-180 degrees
  • Weight 54.5kg
  • Dimensions 455mm (L)×372mm (W)×393mm (H)
Download brochure

Powerful

Patented 400 bar pump used in all Ogura tools provides them with incredible power to weight performance.

Reliable

Extremely powerful and dependable tools that can be relied on during pressing situations.

Efficient

Powered by the excellent Makita Li-ion 18 V battery pack, the only manufacturer licensed to use these impressive batteries.

Supportive

As European distributor, stockist and service agent for Ogura, Vimpex can readily provide spare parts and repairs where required.
